Product Specifications
| Specification | Details |
|---|---|

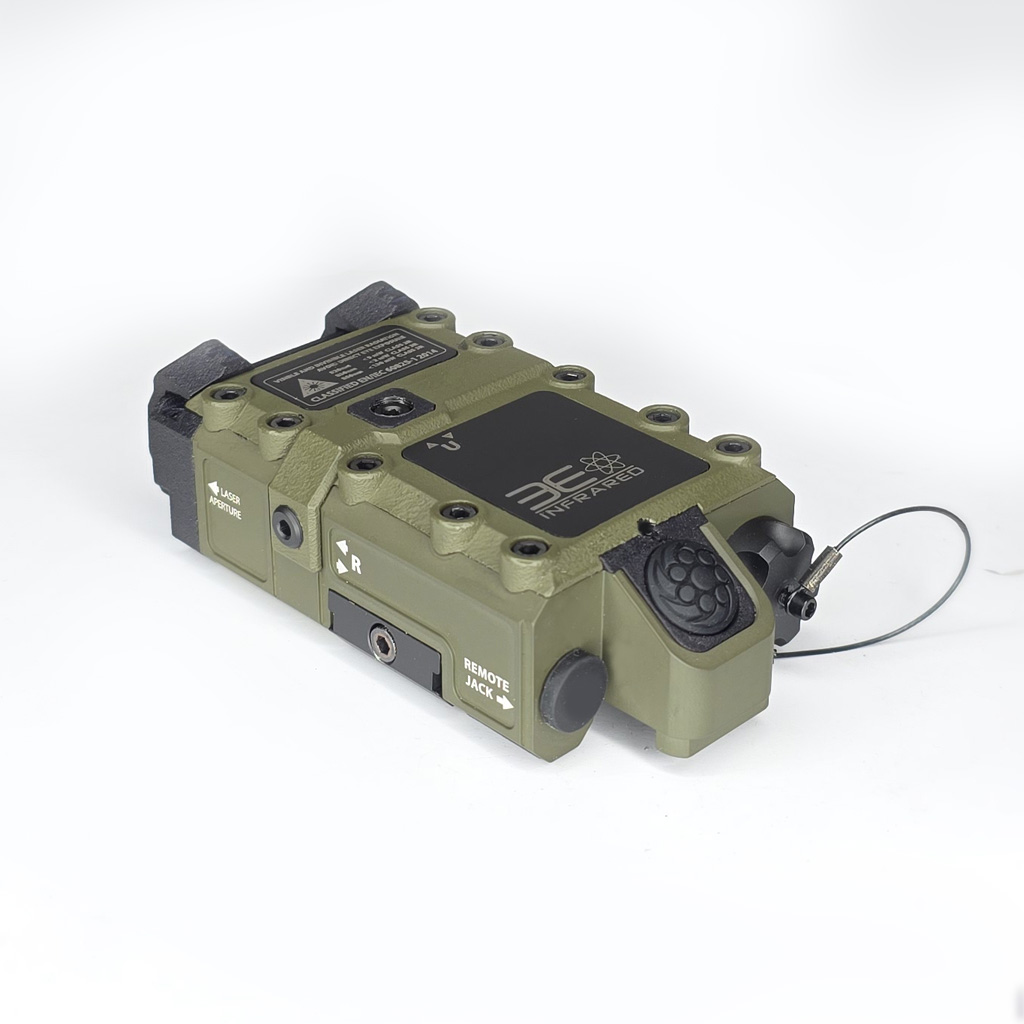

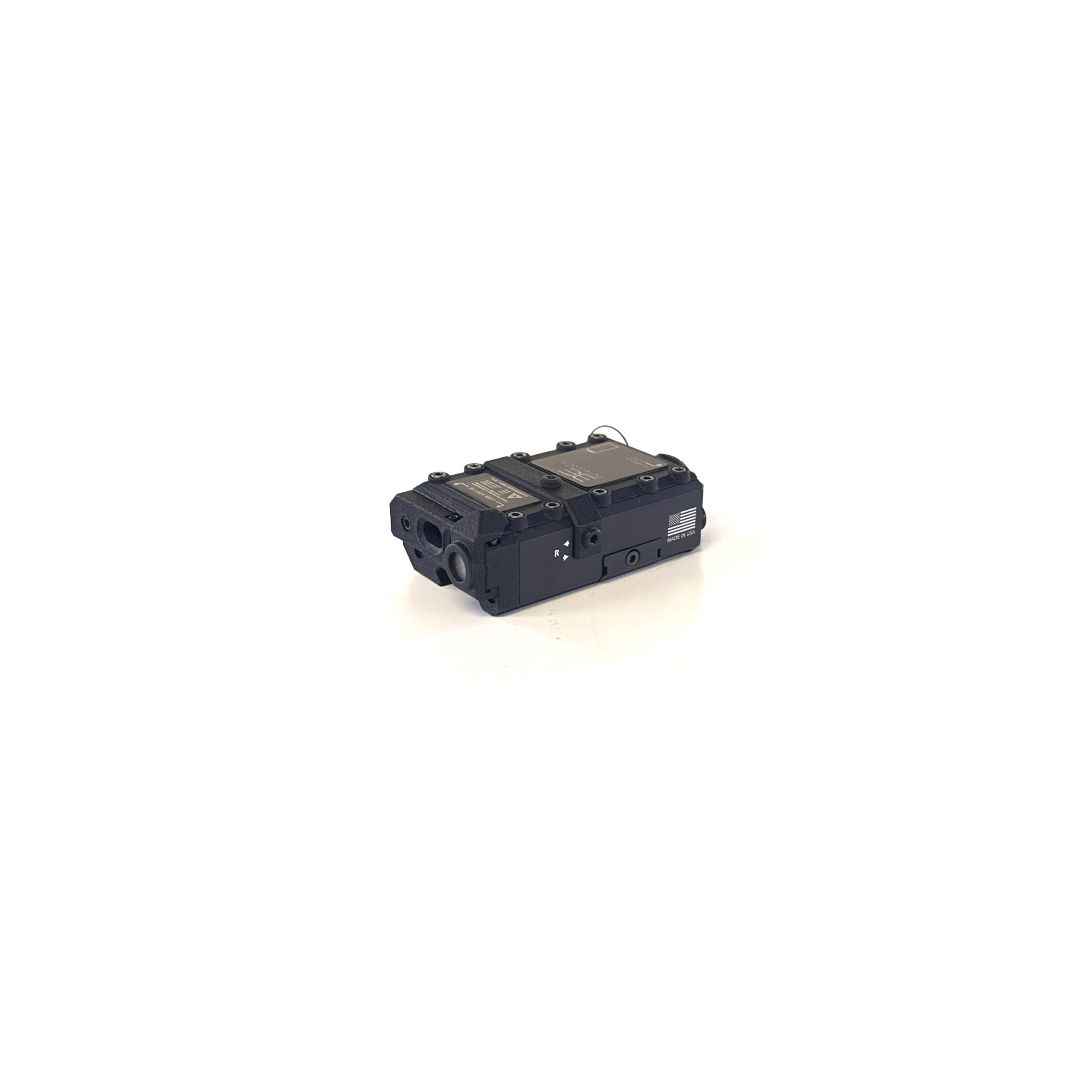

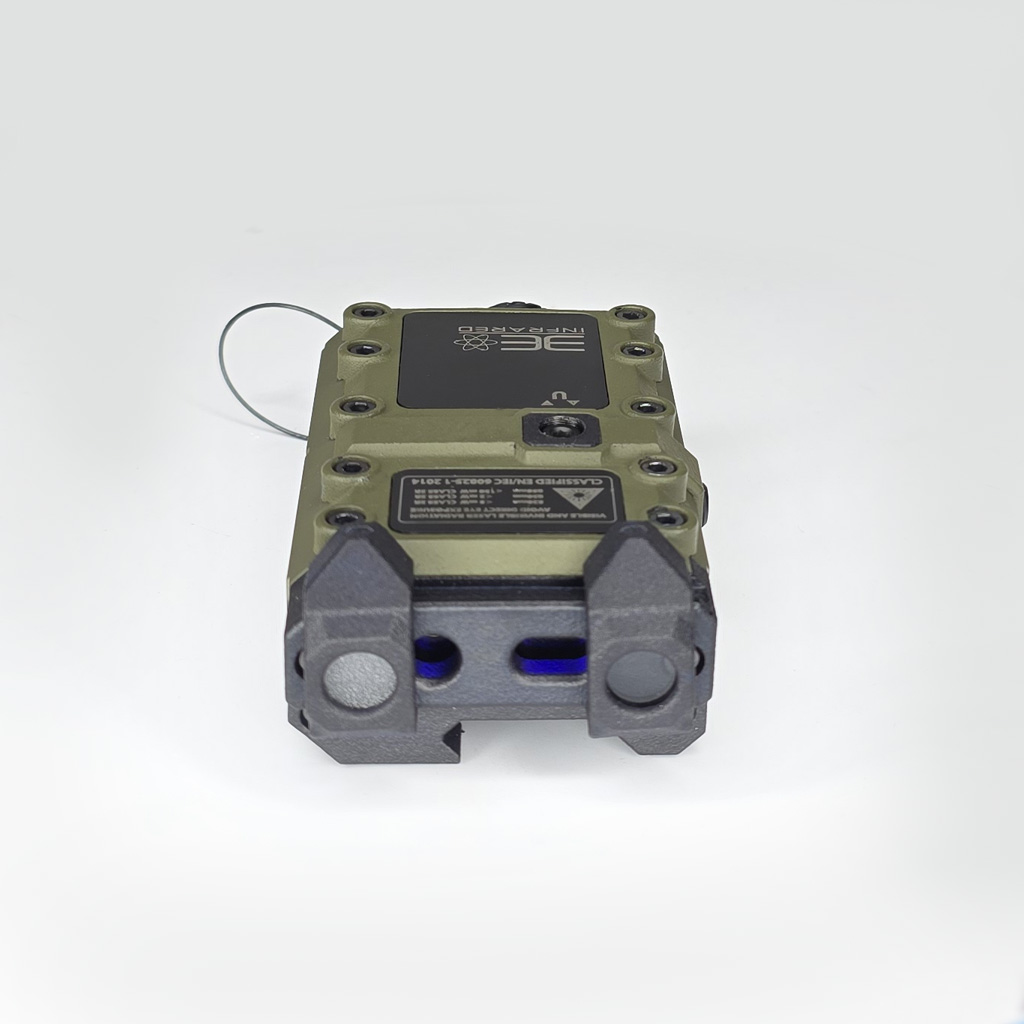

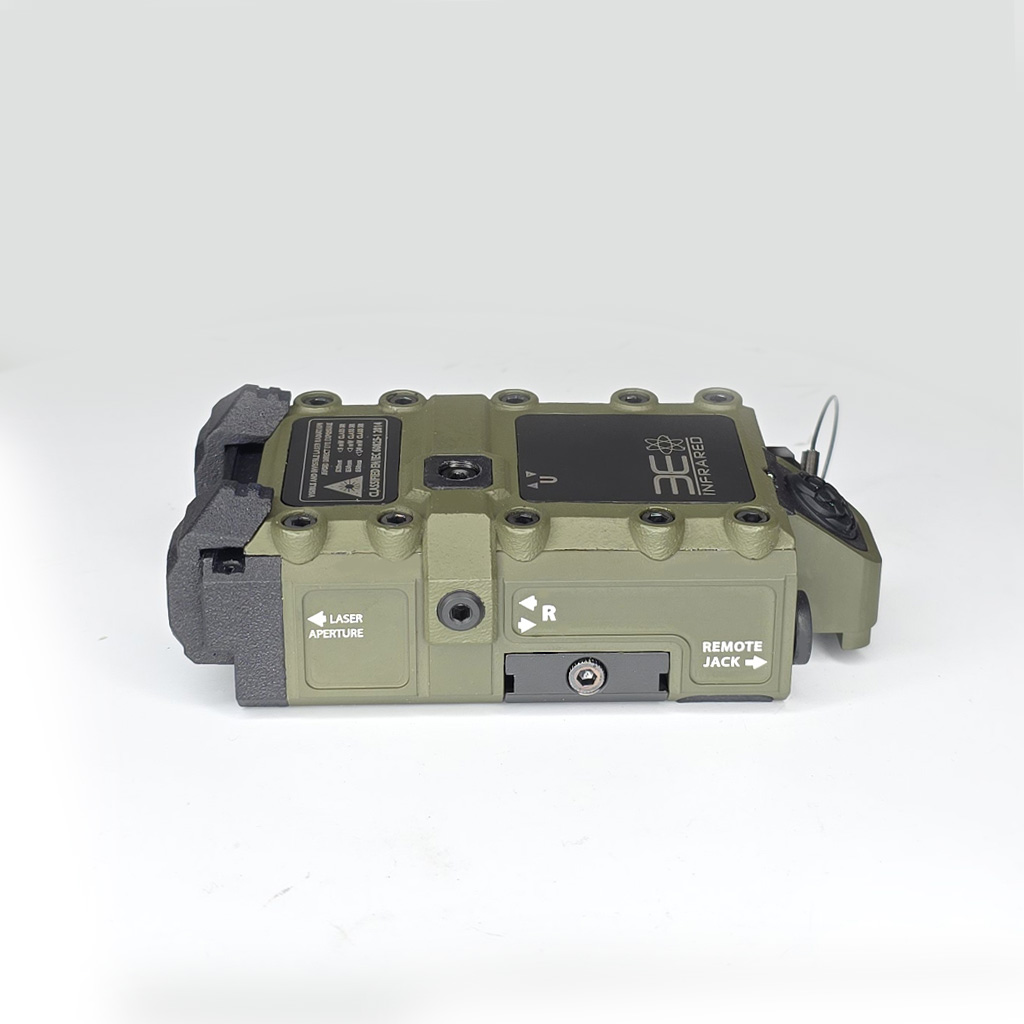

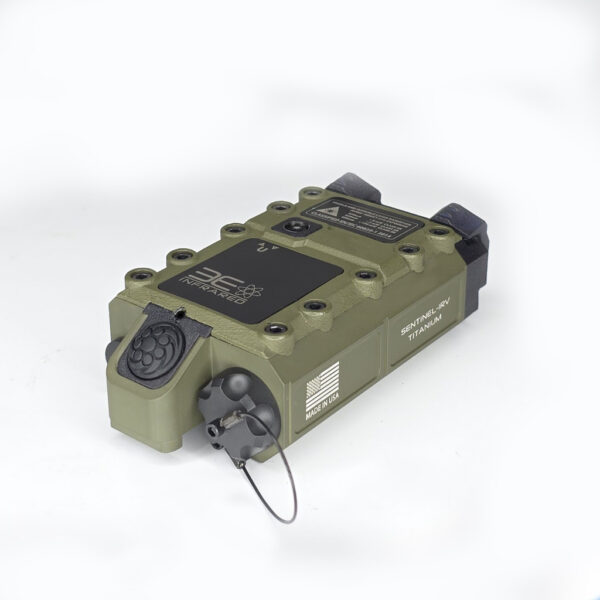

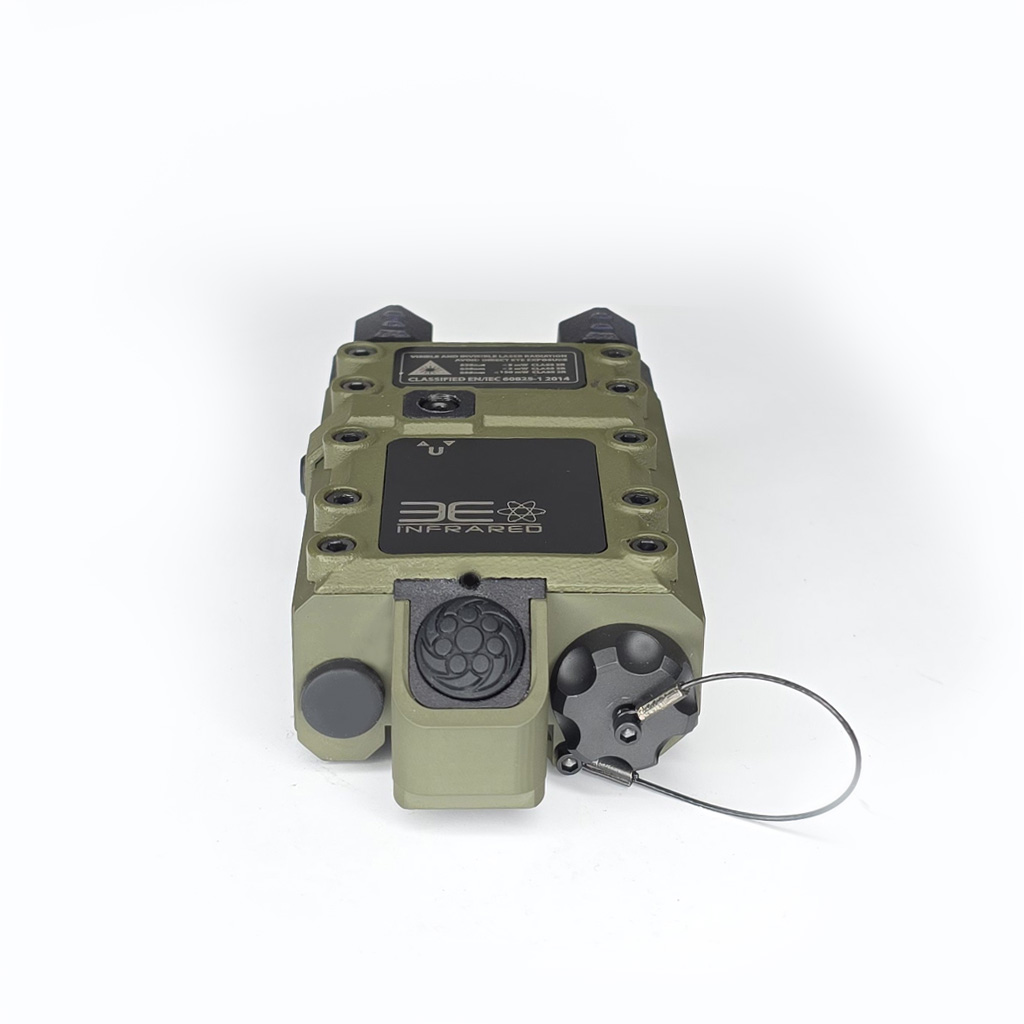

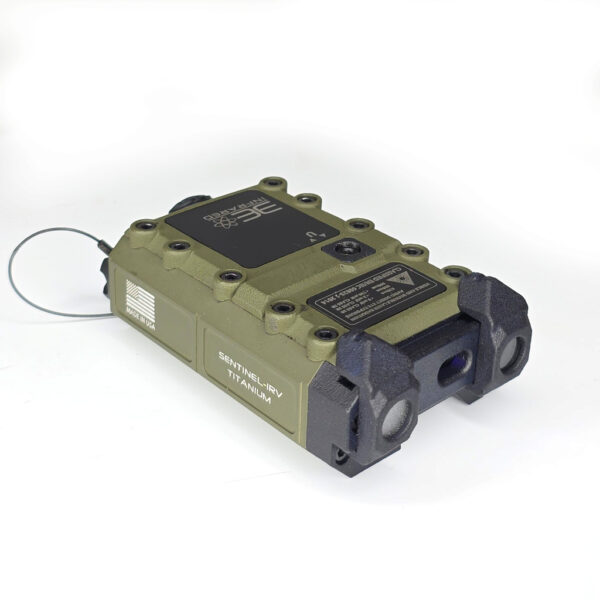

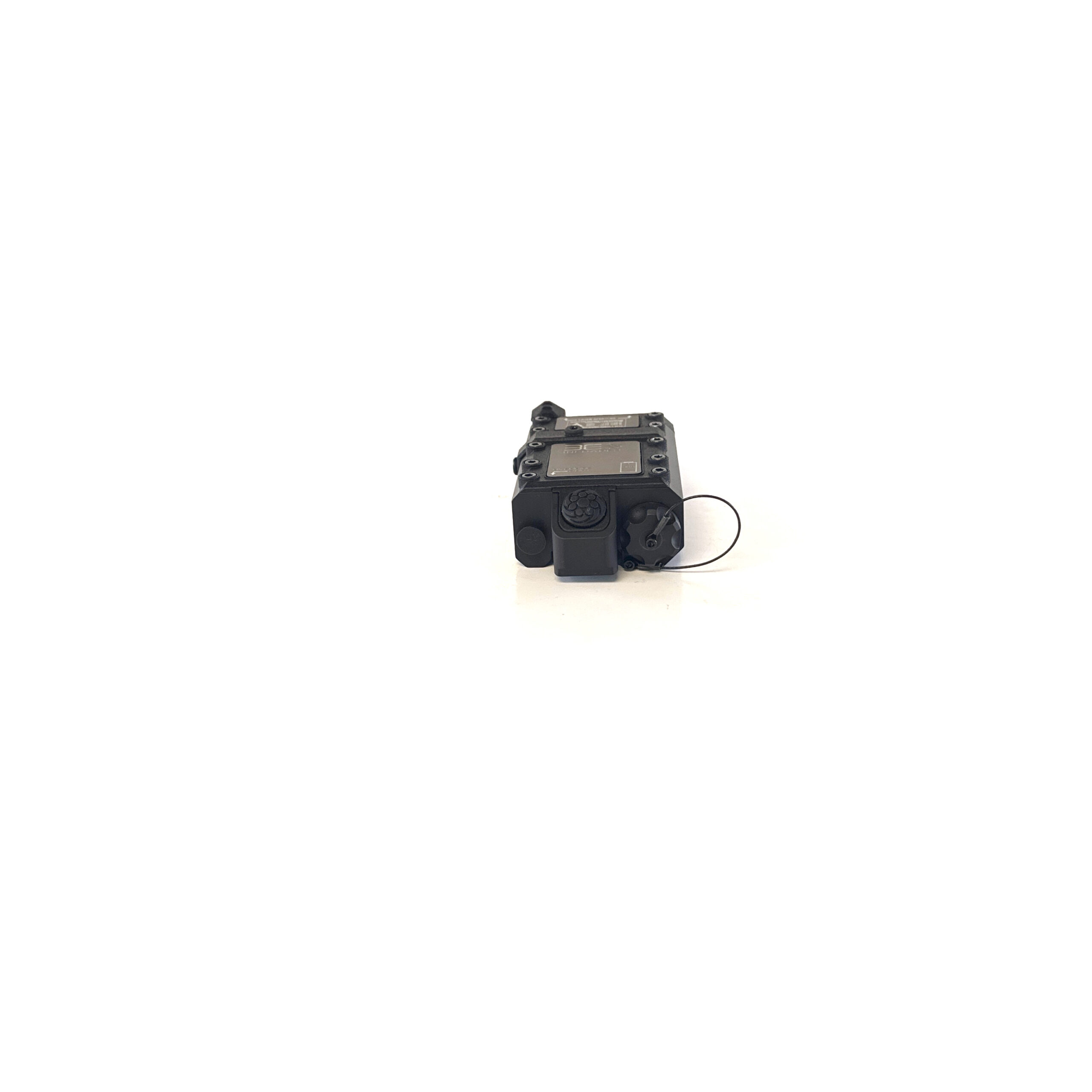

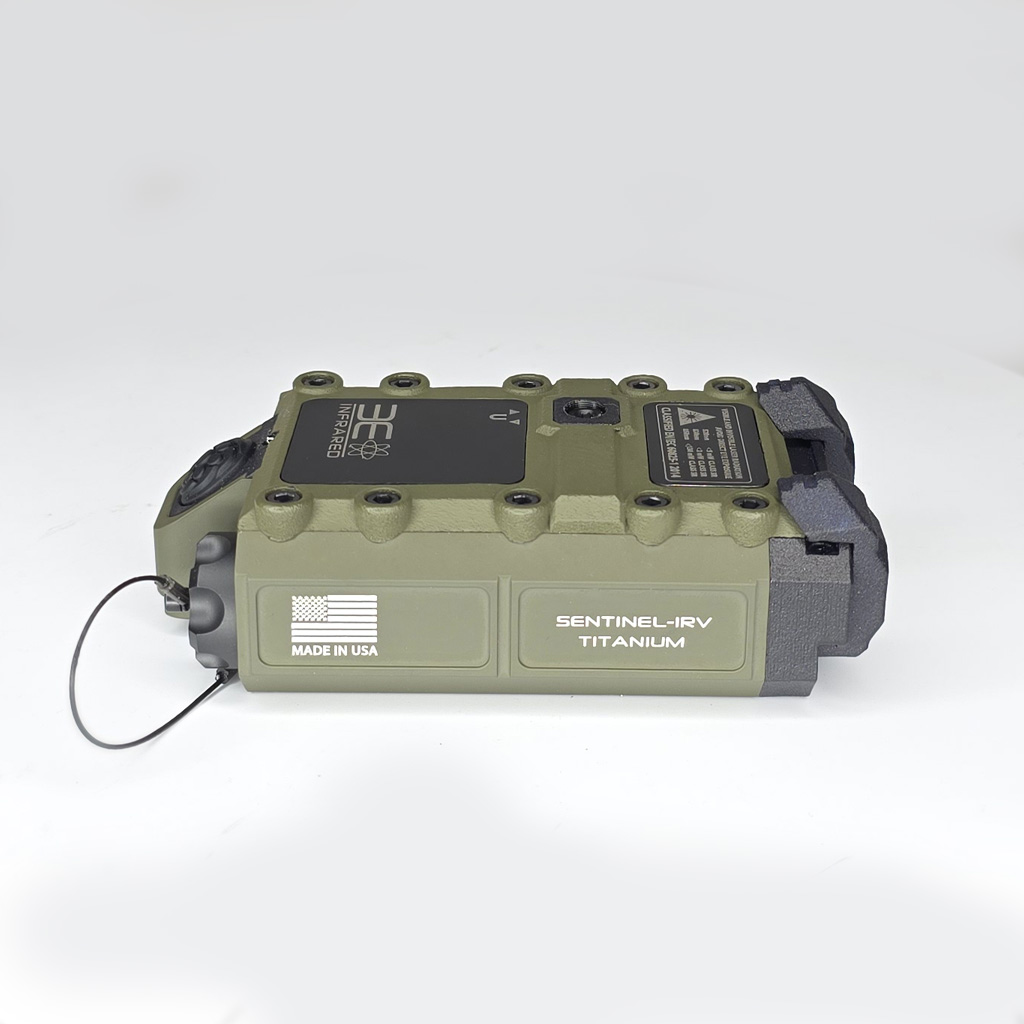

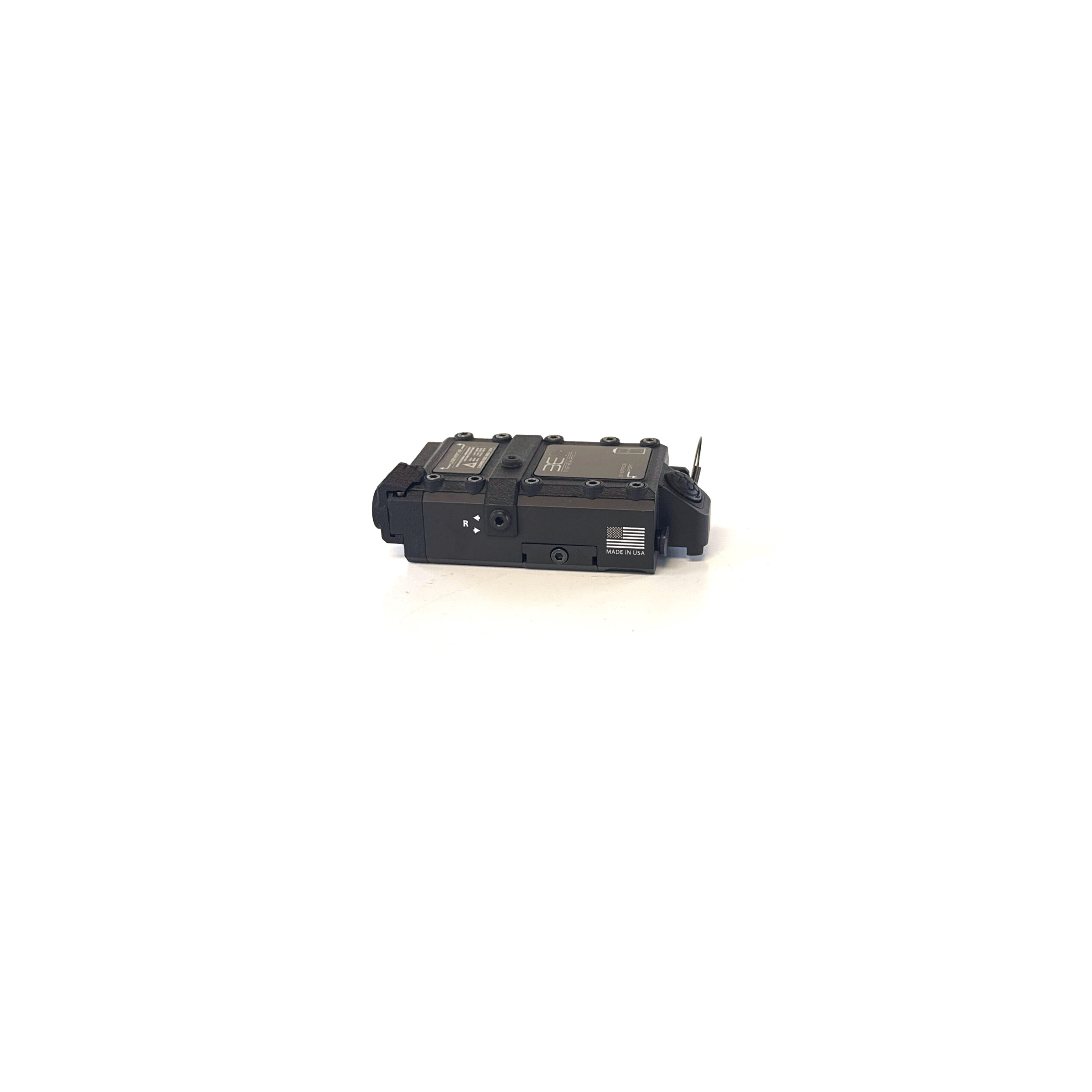

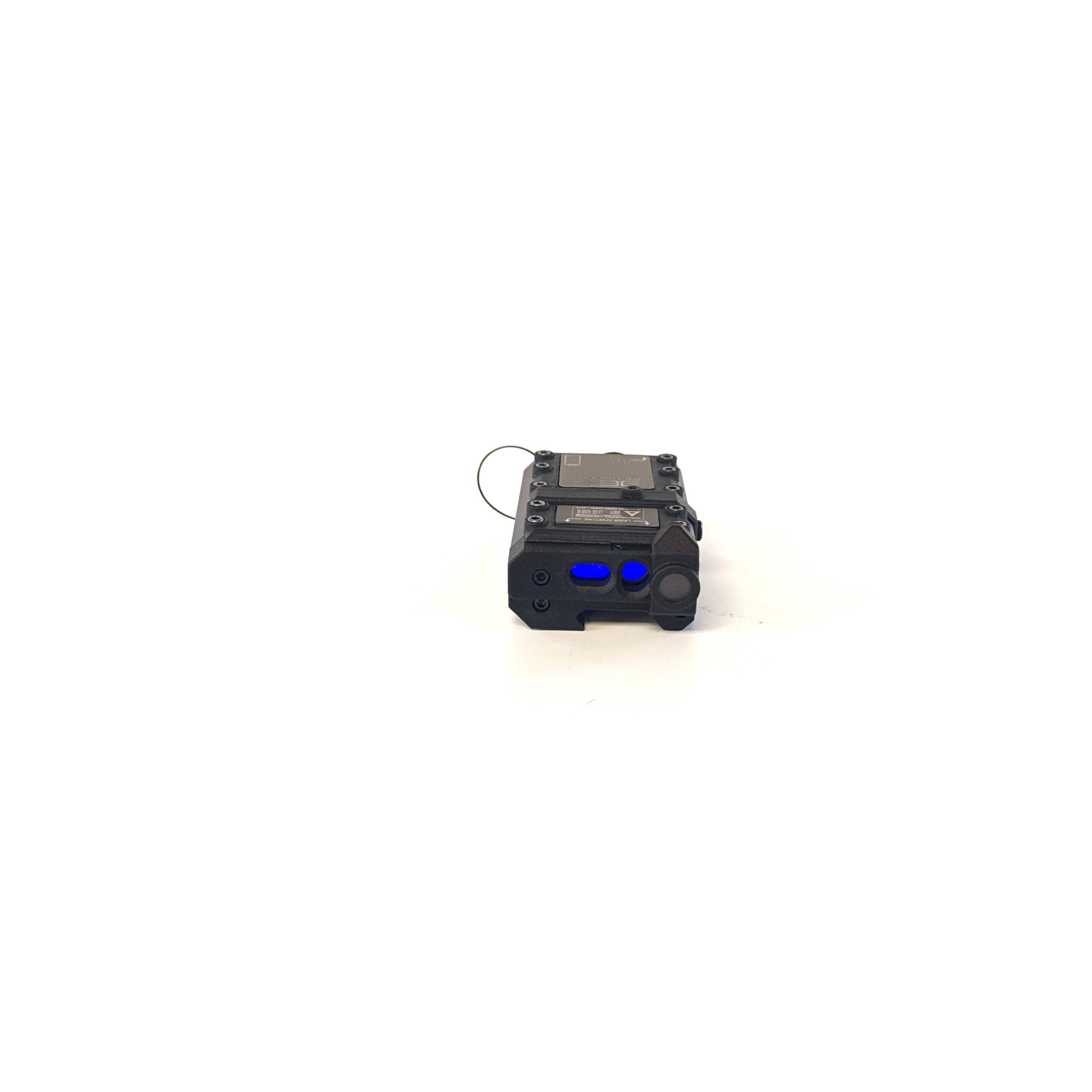

| Product Name | Sentinel-IRV-Override™ – CRANE Override Visible Green Laser, Native Button – IR Laser/VSCEL |
| Technology | 3EIR Switchless Laser Technology (3EIR SLT™) |
| Size / Dimensions | L- 3.8″, W- 2.9″, H- 0.5″ (above the rail) |
| Weight (No Battery) | 5.3 oz |
| Battery | (1) CR123 +0.56 oz |
| Battery Life | > 5 hours |
| Environmental Rating | IP68 (submersible 1m, 3 min.) |
| Housing Tensile Strength | 39,300 psi |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) * |
| Warranty | 2 years Electronics – Lifetime housing: cracks / water egress – Made and technically supported in the USA |
| Visible Laser | Green |
| Output Power (Visible Laser) | < 5.0 mW Class 3R |
| Beam Divergence (Visible Laser) | 0.5 mrad |
| Wavelength (Visible Laser) | 520 nm |
| Range (Visible Laser) | < 50 m Daylight |
| IR Laser | Infrared |
| Output Power (IR Laser) | < 2.5 mW Class 3R |
| Beam Divergence (IR Laser) | 0.5 mrad |
| Wavelength (IR Laser) | 830 nm |
| Range (IR Laser) | > 1000 m |
| VCSEL Illuminator | Infrared |
| Output Power (VCSEL) | < 130 mW Class 3R |
| Beam Divergence (VCSEL) | 3 Degree |
| Wavelength (VCSEL) | 850 nm |
| Range (VCSEL) | > 300 m |
| Recommended Battery | Panasonic or Energizer CR123 Lithium |
| Ships With |
|
| Built With | Arisaka™ Waterproof Button and Arisaka Mount |
