Designate IR-V Black
$2,099.00
Specifications
Size / Dimensions: L-3.5″ W-2.8″ H-1.1″
Weight (w/Battery): 5.35oz
Battery: (1) CR123
Battery Life: > 5 hours
Environmental IP66
Warranty 2 years
Visible Laser: Green
Output Power: > 5.0 mW Class 3R
Beam Divergence: .5 mrad
Wavelength: 520 nm
Range: > 100 m Daylight
IR Laser: Infrared
Output Power: > 3.0 mW Class 3R
Beam Divergence: .5 mrad
Wavelength: 850 nm
Range: > 1000 m
VCSEL Illuminator: Infrared
Output Power: > 130 mW Class 3R
Beam Divergence: 3 Degree
Wavelength: 850 nm
Range: > 1000 m
Product Documents
Specifications
Description

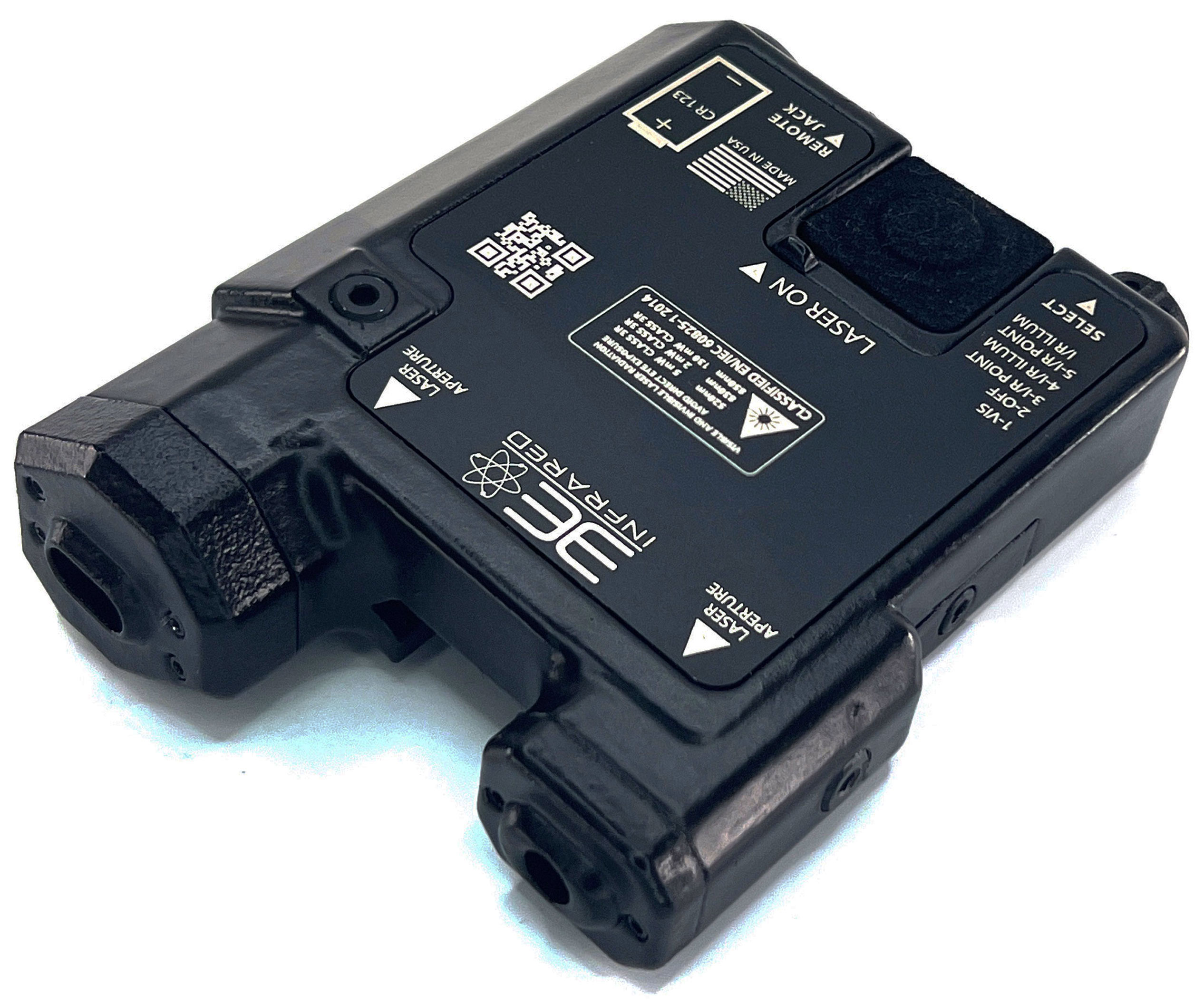

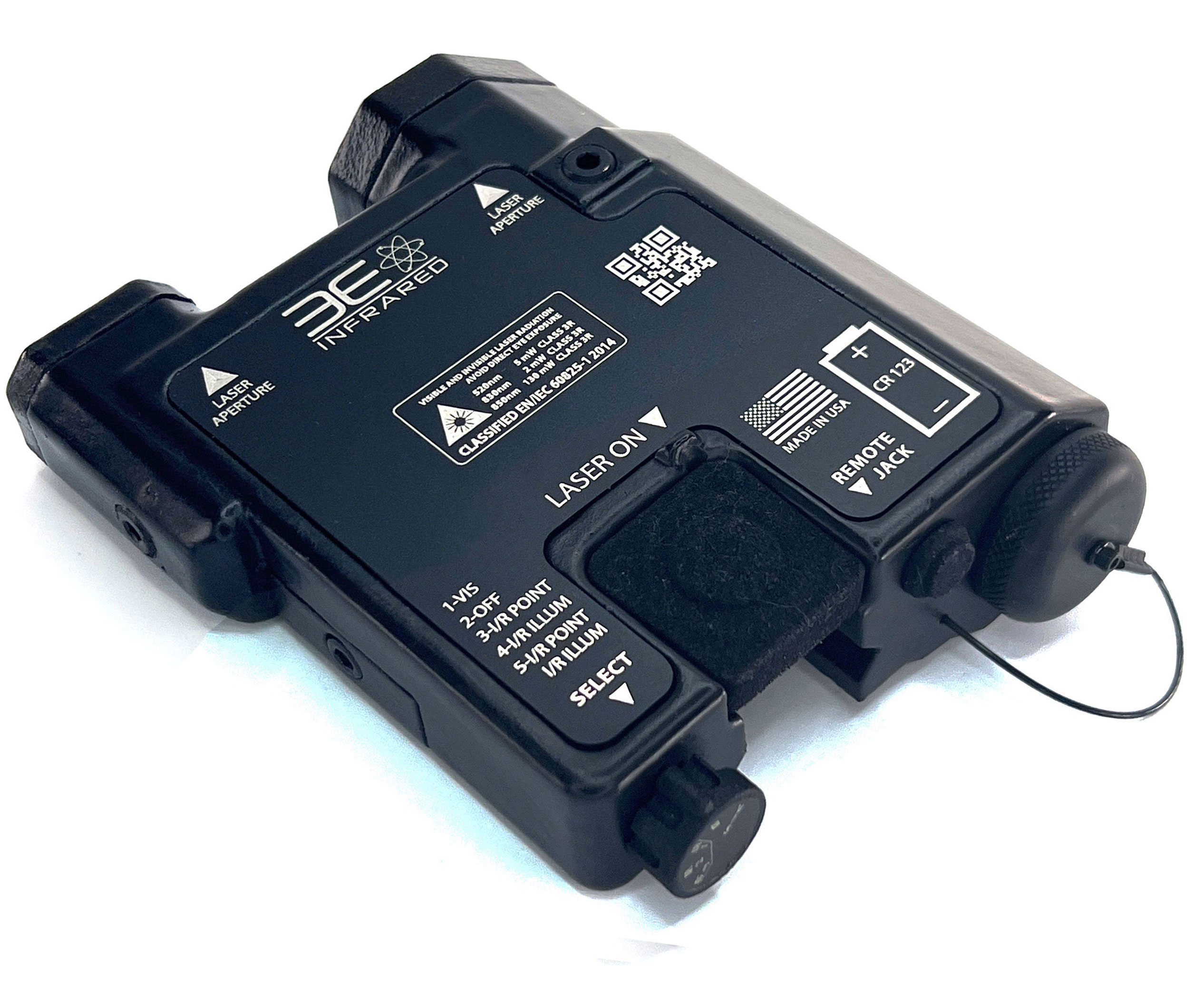

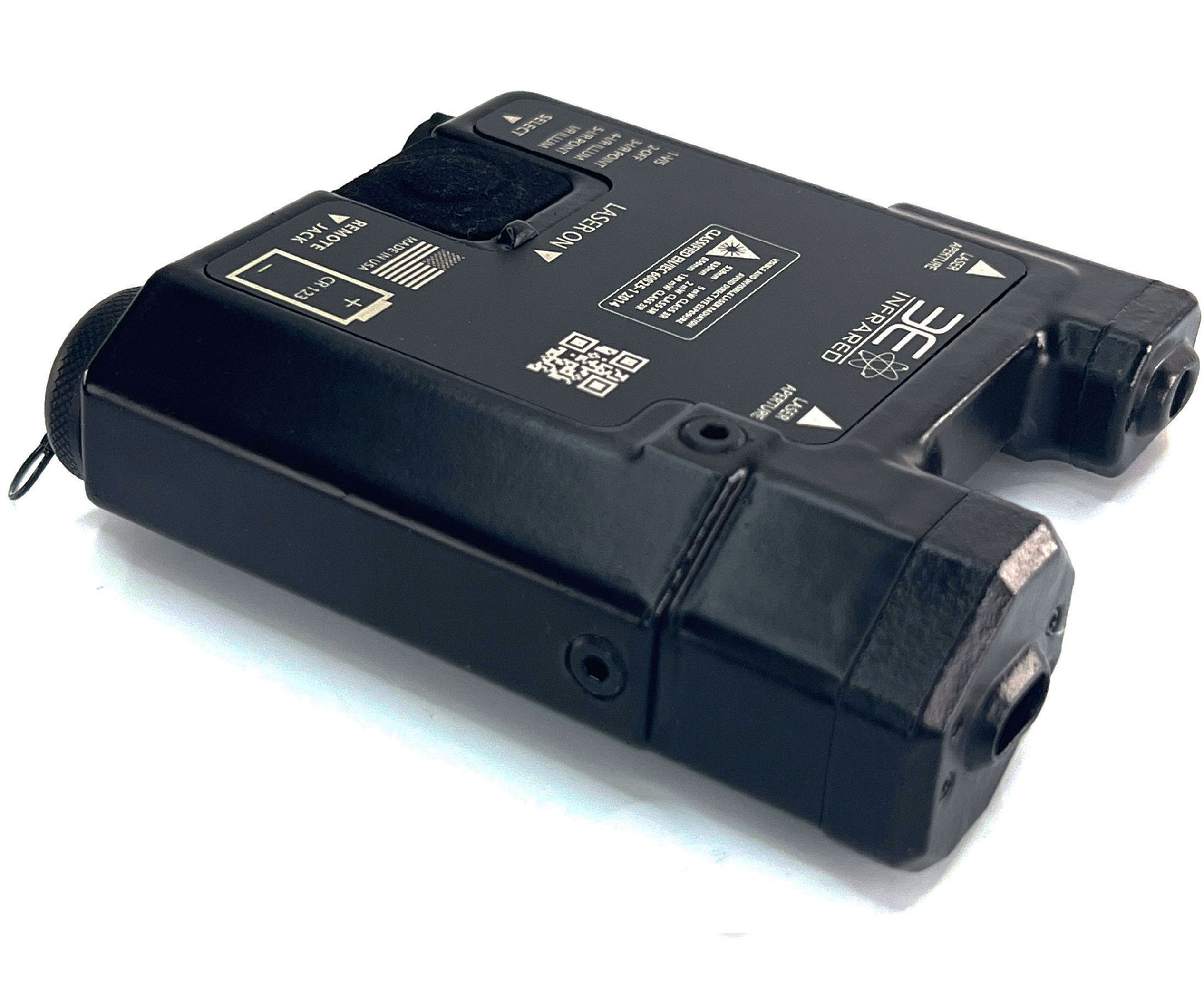

Made in the USA, the Designate IR-V™ is the smallest and lightest, VSCEL illuminator/dual beam aiming laser available. Built from synthetic nylon, this laser is designed to withstand recoil and will perform in all weather conditions.
The lasers small footprint allows the user to switch to iron sights effortlessly as the lasers low footprint lies below the weapons line of sight. The Designate IR-V™ features one of the most powerful VCSEL IR Illuminator lasers
available to the commercial market. The Designate IR-V ™ is a Class 3R laser device, emitting up to 130mw, of IR illumination. 3-degree beam provides a tight focused illumination beam out to one thousand yards. Both the IR laser and the visible green laser are focused and bright Attach the CQB Filter and the illuminator becomes a 40-degree FOV IR flood light.
This filter is perfect for indoor or outdoor applications out to 200 yards. The Designate IR-V “set-it, forget-it” zero allows the user to zero the visible green laser once. Then, both laser sights are precisely co-witnessed for accuracy. The user controls have been carefully engineered for minimal drag, reliability, and ease of use. An optional “3EIR hot button” interlaces with the lasers primary fire button, providing easy activation for an attached white light like the Surefire Scout Light Pro ™
The Designate IR-V set-it, forget-it zero allows the user to zero the visible laser once. Then, both laser sights are precisely co-witnessed for accuracy. The user controls have been carefully engineered for minimal drag, reliability, and ease of use.
