Designate IR OD Green

$895.00

Specifications
Size / Dimensions: L-3.5″ W-2.8″ H-1.1″
Weight (w/Battery): 5.35oz
Battery: (1) CR123
Battery Life: > 5 hours
Environmental IP66
Warranty 2 years

Visible Laser: Green
Output Power: > 5.0 mW Class 3R
Beam Divergence: .5 mrad
Wavelength: 520 nm
Range: > 100 m Daylight

IR Laser: Infrared
Output Power: > 3.0 mW Class 3R
Beam Divergence: .5 mrad
Wavelength: 850 nm
Range: > 1000 m

VCSEL Illuminator: Infrared
Output Power: > 130 mW Class 3R
Beam Divergence: 3 Degree
Wavelength: 850 nm
Range: > 1000 m

SKU: 100300 Category:

Product Documents

Description

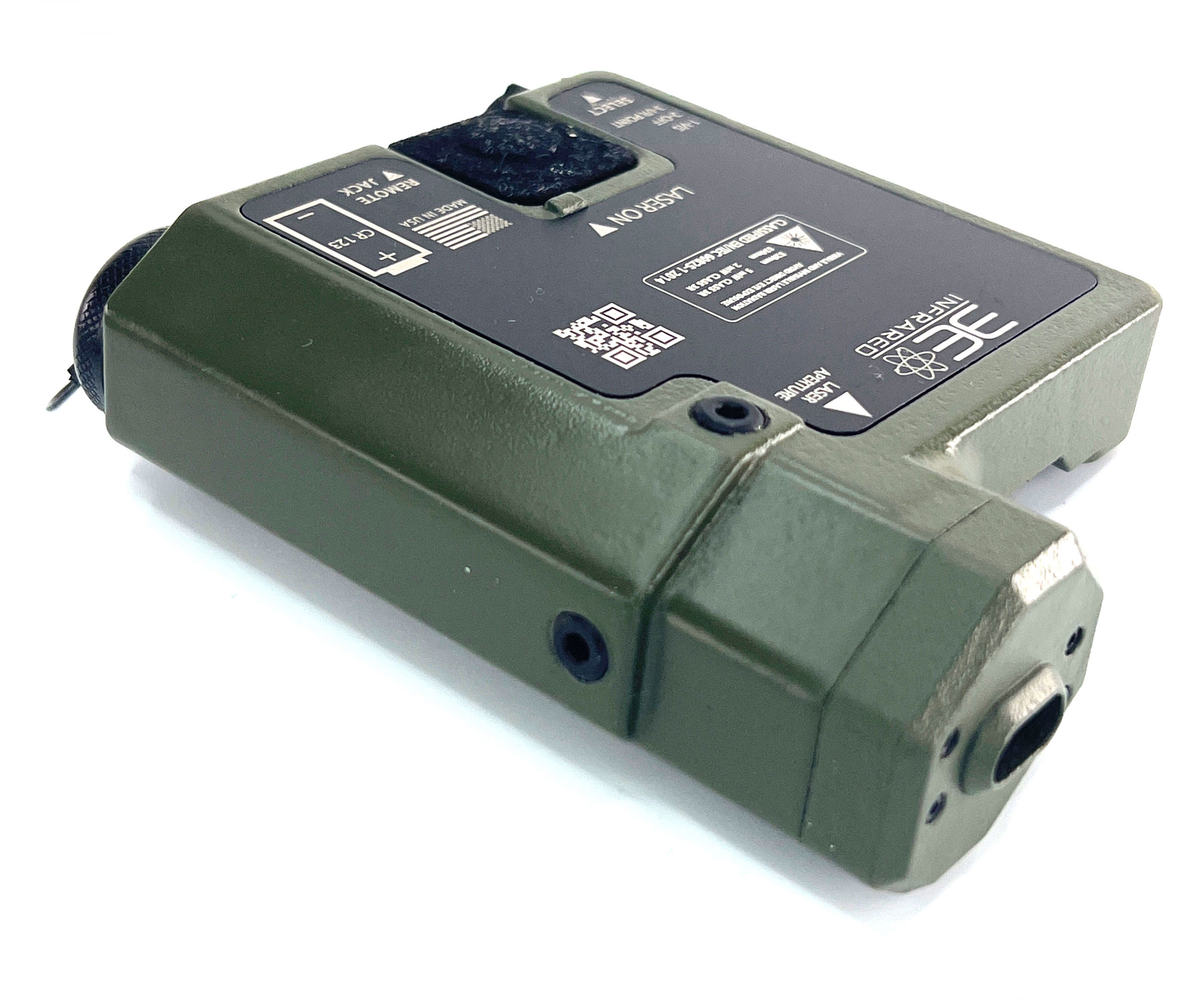

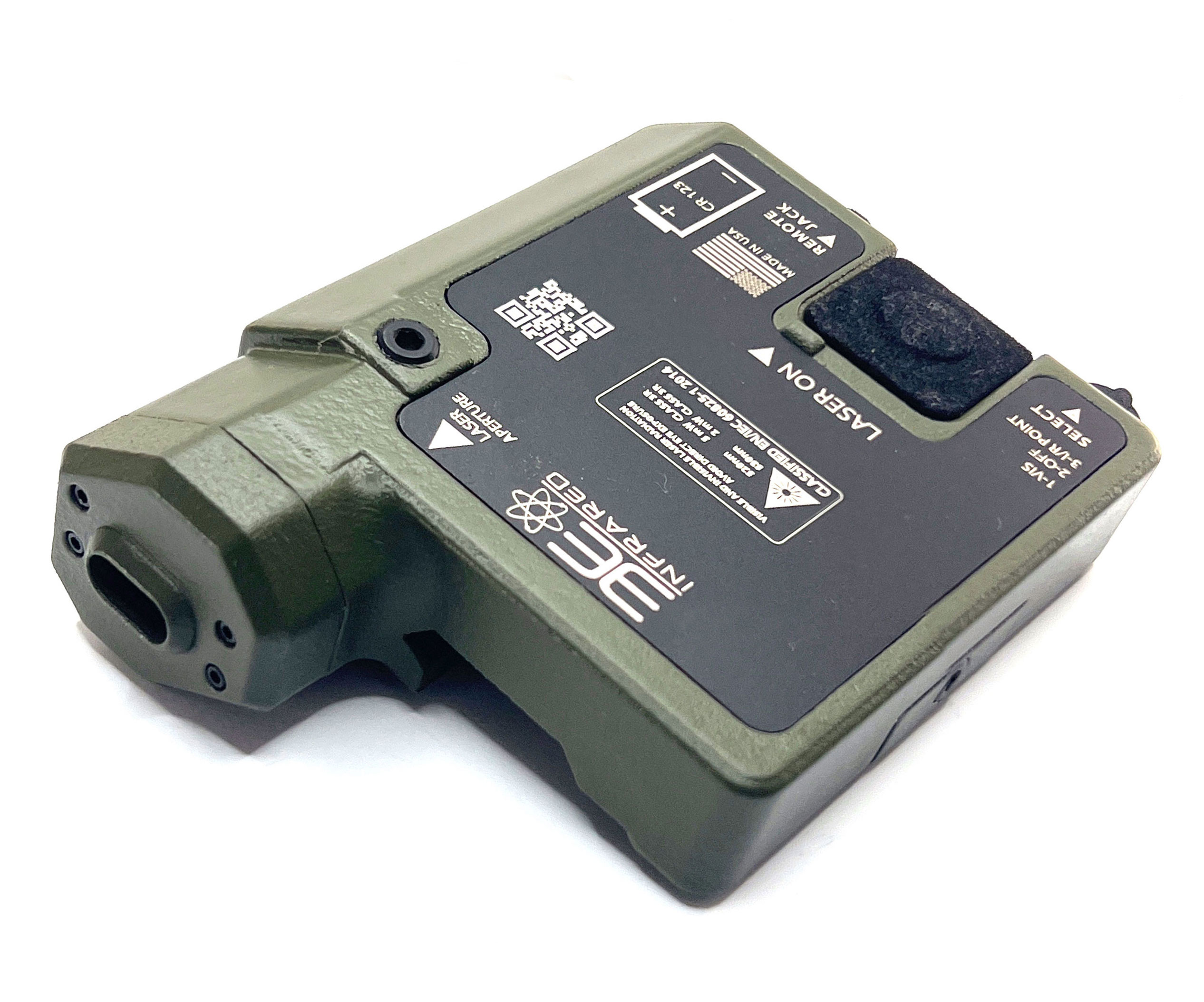

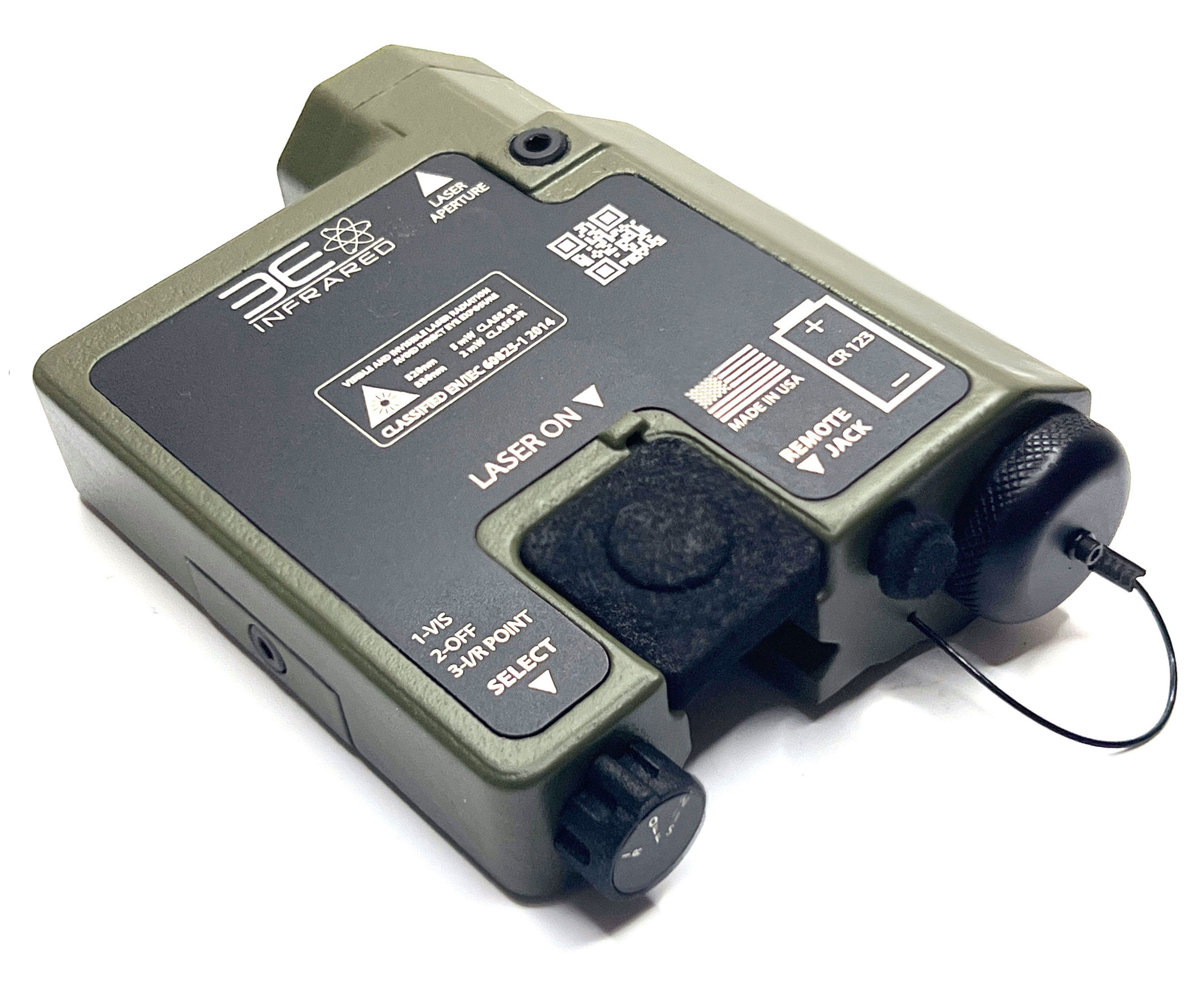

Made in the USA, the Designate IR™ is the one of the smallest and lightest, dual beam aiming laser available. Built from synthetic nylon, this laser is designed to withstand recoil and will perform in all weather conditions.

The laser’s small footprint allows the user to co-witness to any day optic including iron sights, as the lasers low footprint lies well below the weapons line of sight. The Designate IR™ is a Class 3R laser device. Both the IR laser and the visible green laser are focused and bright.

The Designate IR™ “set-it, forget-it” zero allows the user to zero the visible green laser once. Then, both IR and the green laser are precisely co-witnessed for accuracy. The user controls have been carefully engineered for minimal drag, reliability, and ease of use.

An optional “3EIR hot button” interlaces with the Designate IR’s lasers primary fire button and the rail, providing easy “C-Clamp” grip activation for both the lasers and an attached IR/white light, like the Surefire Scout Light Pro ™ IR (aka Vampire) or Optional VCSEL illuminator.

The Designate IR set-it, forget-it zero allows the user to zero the visible laser once. Then, both laser sights are precisely co-witnessed for accuracy. The user controls have been carefully engineered for minimal drag, reliability, and ease of use.
